Characteristics

This sensor can be used to guide Automated Guided Vehicle (AGV) without problem under environment where machining oil, dust, or lint is suspended in the air, or on a carpet . Three types of sensors are available: Guide sensor for guiding AGV to run along a magnetic tape (guide tape), Address sensor for obtaining the location information of AGV, and Stop sensor for detecting stop location. Also available are magnetic tapes (guide tape) attached on floors and magnetic rods.

Applications

Guiding automated guided vehicles (AGV), obtaining information on locations (relative address), and obtaining information on stop locations.

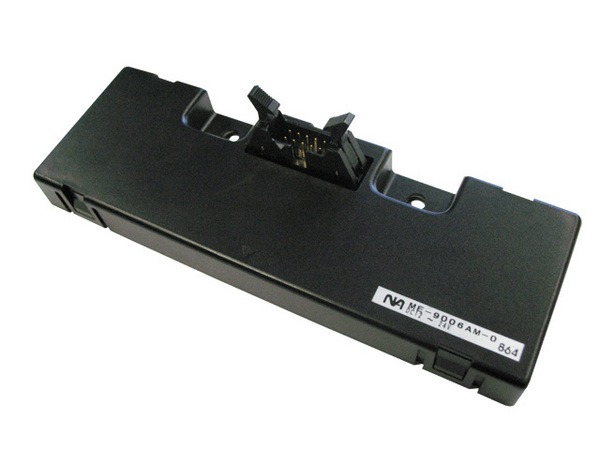

ME-9006AM-0

Characteristics
* Sensor for guiding automated guided vehicles to destination points * Digital 8 bit output (10 mm pitch) * NA unique circuit design, realizing low cost * RoHS compliant * Japan made

Output configuration		NPN open collector Normally open 8 points
Working characteristic (at room temperature)	Working distance	40 mm or more
Working characteristic (at room temperature)	Standard control magnet	50 mm wide x 0.8 mm thick Rubber magnet (sold separately)
Use conditions	Usage	Guiding AGV route
Use conditions	Operating temperature	-10 to +50°C
Electrical characteristics	Operation voltage	12 to 24 VDC
	Maximum current consumption	50 mA(at DC 12V)
	Maximum residual voltage	0.6 V
	Maximum switching current	50 mA(at DC 12V)
Others	Ingress protection	-
External drawing

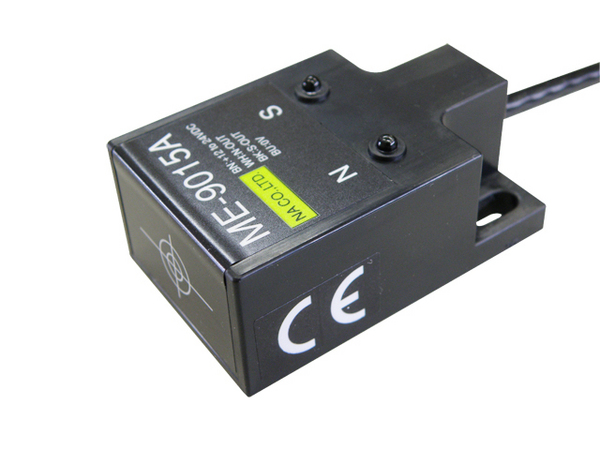

ME-9015A

Characteristics
* Address sensor for obtaining address information of automated guided vehicles * Two types of address information (1 bit) can be obtained * Can also be used as a stop sensor * Simple waterproof type (IP67) * RoHS compliant * CE marking obtained * Japan made

Output configuration		NPN open collector Normally open One point for N pole and S pole each
Working characteristic (at room temperature)	Working distance	40 mm or more
Working characteristic (at room temperature)	Standard control magnet	50 mm wide x 0.8 mm thick Rubber magnet (sold separately)
Use conditions	Usage	Reading AGV address information Detecting N and S poles
Use conditions	Working temperature	-10 to +60°C
Electrical characteristics	Operation voltage	12 to 24 VDC
	Maximum current consumption	50 mA(at DC 24V)
	Maximum residual voltage	0.6 V
	Maximum switching current	100 mA(at DC 24V)
Others	Ingress protection	IP67
External drawing

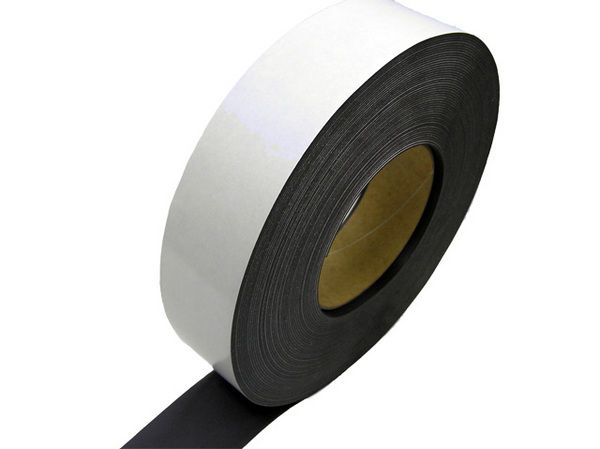

GTN-501

Characteristics
* Guide tape (magnetic tape) * 50 mm wide x 25,000 mm long x 1 mm thick * Japan made

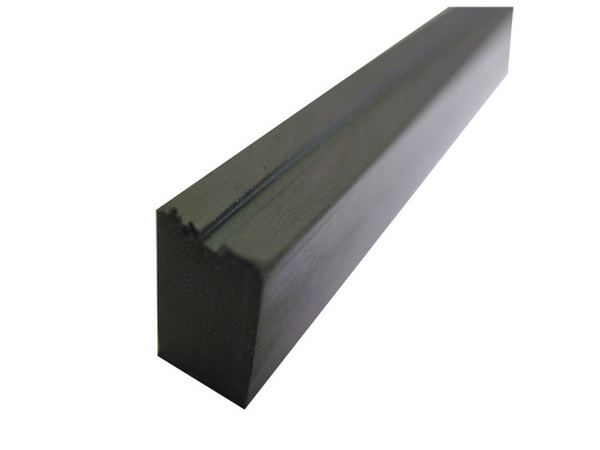

GTN-610

Characteristics
* Guide magnet (magnetic rod) * 6 mm wide x 1,000 mm long x 10 mm thick * Japan made
